Versatile and Compact Design
The BWIII PSG Plus is an advanced diagnostic solution combining full EEG and PSG capabilities in one compact, high-performance system. Its lightweight and portable architecture makes it ideal for both mobile use and permanent installation in sleep laboratories.
Streamlined Patient Experience

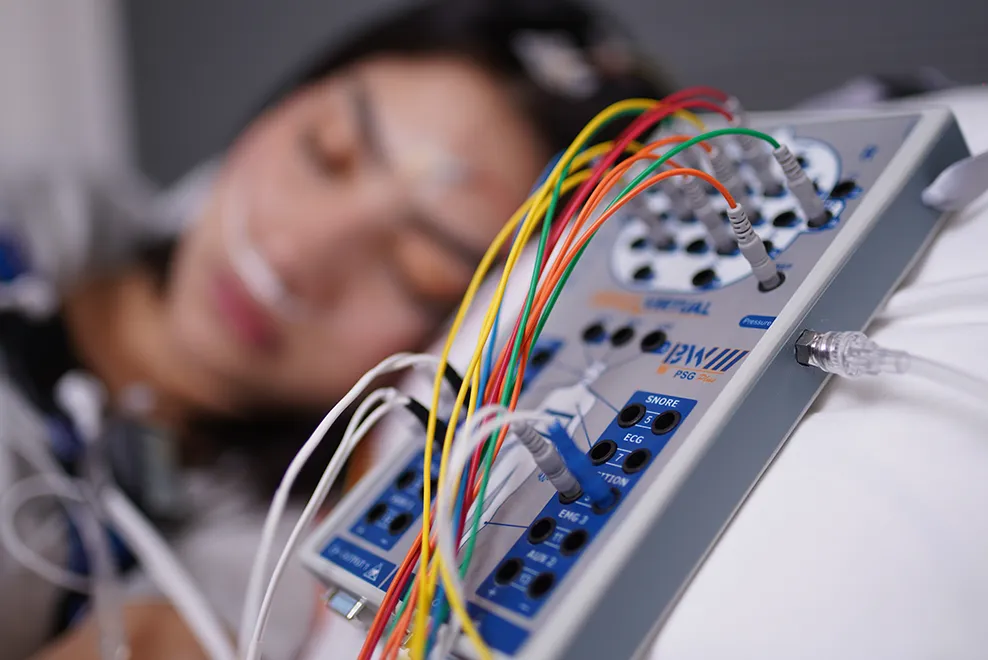

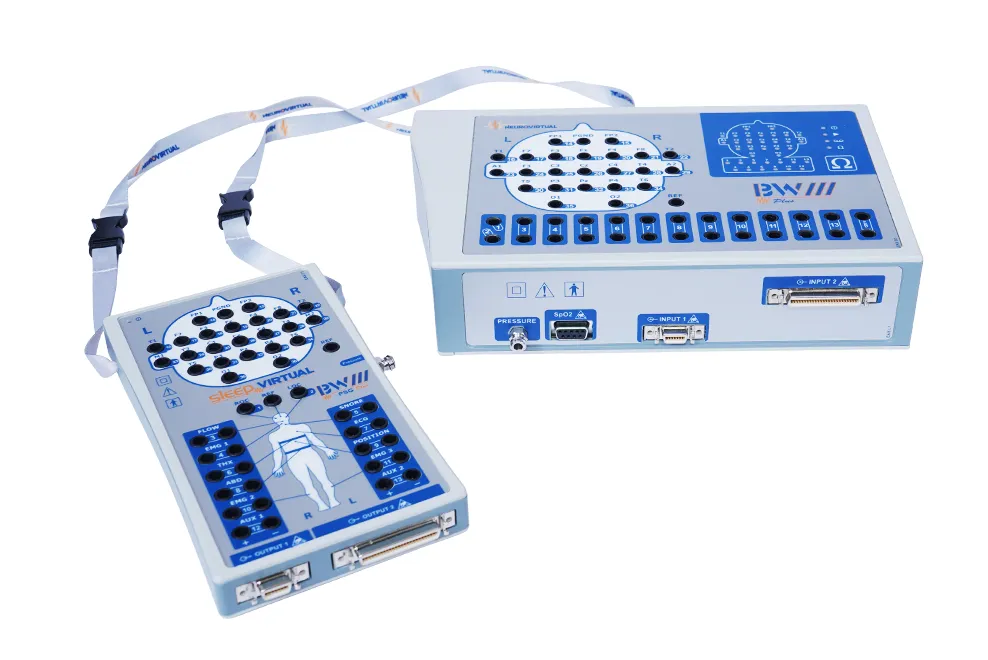

Designed to enhance clinical workflows, the BWIII PSG Plus features a dedicated PSG headbox with clearly labeled sensor inputs and dual connection options for key parameters—offering greater flexibility and redundancy during studies. An integrated bedside impedance check ensures quick verification of electrode connectivity directly from the amplifier, improving patient comfort and technician efficiency.
Seamless Sleep Signal Acquisition
The system supports up to 50 channels, including full EEG 10-20 placement, electrooculography (LOC/ROC), chin and leg EMG, respiratory effort (thorax and abdomen), ECG, and body position tracking. Integrated Nonin® pulse oximetry, thermocouple flow sensors, and snore detection ensure comprehensive respiratory analysis in accordance with AASM standards.
Built-In Auxiliary Integration
Eight dedicated DC input channels enable the connection of external devices such as CPAP, BiPAP, capnography, or CO₂ sensors. Built-in pressure transducers on both the headbox and amplifier allow direct monitoring of pressure flow and leakage during therapy titration. Can extend to 16 total DC channels via separate DC module.
High-Fidelity Signal Processing
The BWIII PSG Plus uses high-resolution 16-bit A/D conversion and supports sample rates of up to 2048 Hz, ensuring precise signal acquisition. Its touchproof connectors and built-in signal filtering provide clean, reliable data for accurate diagnosis.
Full BWAnalysis Compatibility
Fully integrated with Neurovirtual’s BWAnalysis Sleep Diagnostic Suite, the system offers manual and automatic scoring, advanced sleep statistics, live acquisition review, synchronized HD video/audio capture, and customizable reporting features.
