Designed for Critical Care Environments
The BWIII EEG Plus is a versatile, cart-based EEG system developed for high-acuity hospital settings such as Neuro ICU, NICU, stroke, and trauma units. It combines real-time monitoring, mobility, and diagnostic precision—all in one reliable platform.
Streamlined Workflow for Clinical Teams
The system enables remote or local EEG access via secure web or mobile connections. Physicians and technicians can review live studies, apply unit-specific protocols, and generate reports using customizable Microsoft Word templates. Integration with hospital EMRs is seamless via HL7.
Efficient Data and Video Management
With BWCenter software, the system manages EEG studies in a centralized SQL database. Synchronized high-resolution video enhances diagnostic clarity by aligning clinical observations with EEG activity—live or during review via BWAnalysis software.
Modular and Integrated Design
Included components:
• BWIII EEG Plus Amplifier
• 50-channel Remote Headbox
• HD video system (optional)
• Standard photic stimulator included
• BWFlash photic stimulator (optional)
• Medical-grade power supply
• BWCenter SQL Patient Database and Data Management software
• BWAnalysis software (Windows 10+)

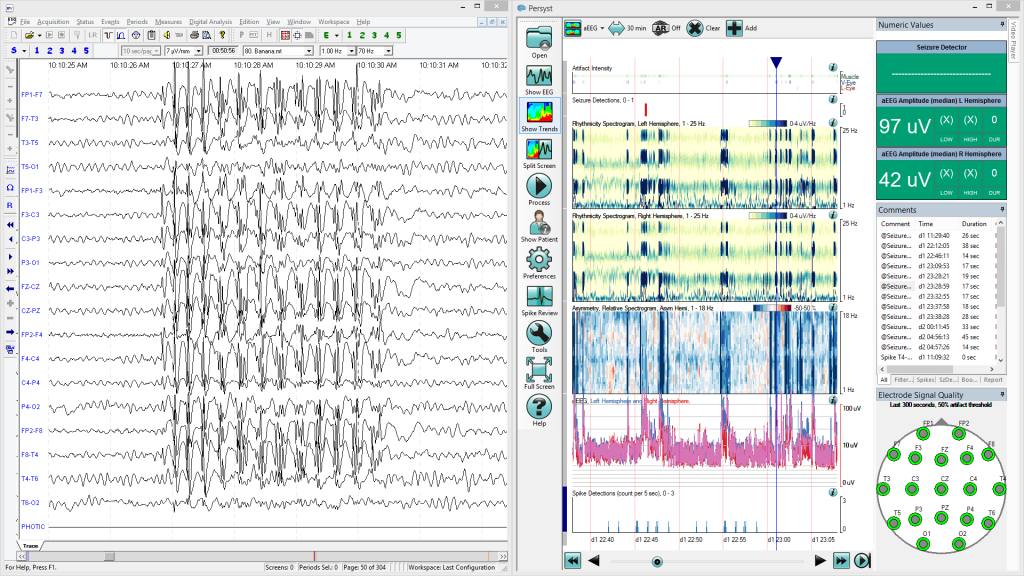

• Online integrated with Persyst Continuous Monitoring
• Digital Analysis and Brain
Mapping Included

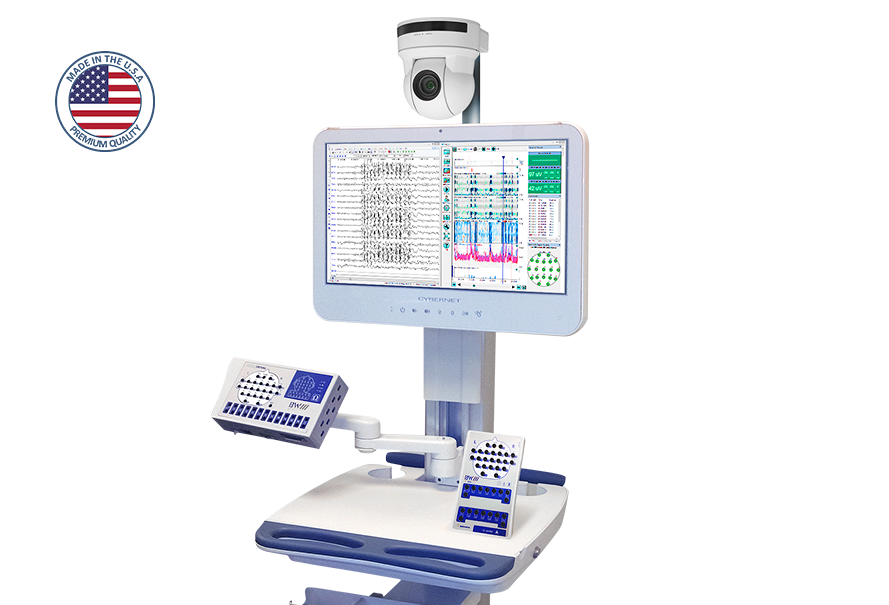

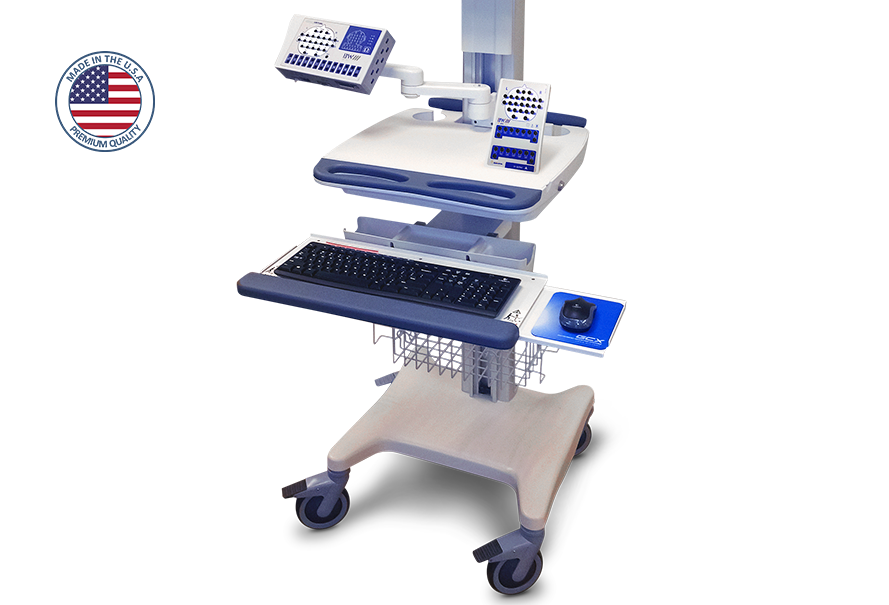

Mounted on a medical cart, the system is optimized for bedside use in ICU and neuromonitoring units.
Precision Signal Acquisition
• Up to 50 total input channels:
◦ 36 AC EEG
◦ 8 DC inputs
◦ Optional SpO₂ and pressure transducer
• Full 10–20 EEG coverage with auxiliary and physiological inputs
• 16-bit A/D conversion, >100 MΩ impedance, and <1 µV RMS noise
• Filters: 0.01–100 Hz; notch filter: 50/60 Hz
• Sampling rate: up to 2048 Hz
• Real-time impedance checks directly on the amplifier
Integrated Photostimulation – BWFlash Module
The BWFlash LED stimulator works seamlessly with BWAnalysis or in standalone mode.
Key features:
• 1–60 Hz stimulation frequency
• 10 adjustable intensity levels
• Manual, automatic, and trigger-out operation (3.5 mm AUX)
• USB-powered with built-in safety functions
Built for Clinical Safety and Reliability
The system complies with IEC 60601-1 and IEC 60601-2-26 standards and is classified as Type BF. Engineered for hospital environments, it includes safeguards against EMI and ESD, ensuring stable performance at the bedside or in high-demand clinical workflows.
