Simplifying Visual Activation in EEG
The BWFlash is a compact, modern photic stimulator designed to enhance EEG studies by providing controlled, high-intensity visual stimuli. It’s ideal for evoking photoparoxysmal responses in patients with photosensitivity, delivering both clinical reliability and operational ease.
Practical and Flexible Operation
• Works in standalone mode or fully integrated with BWAnalysis software

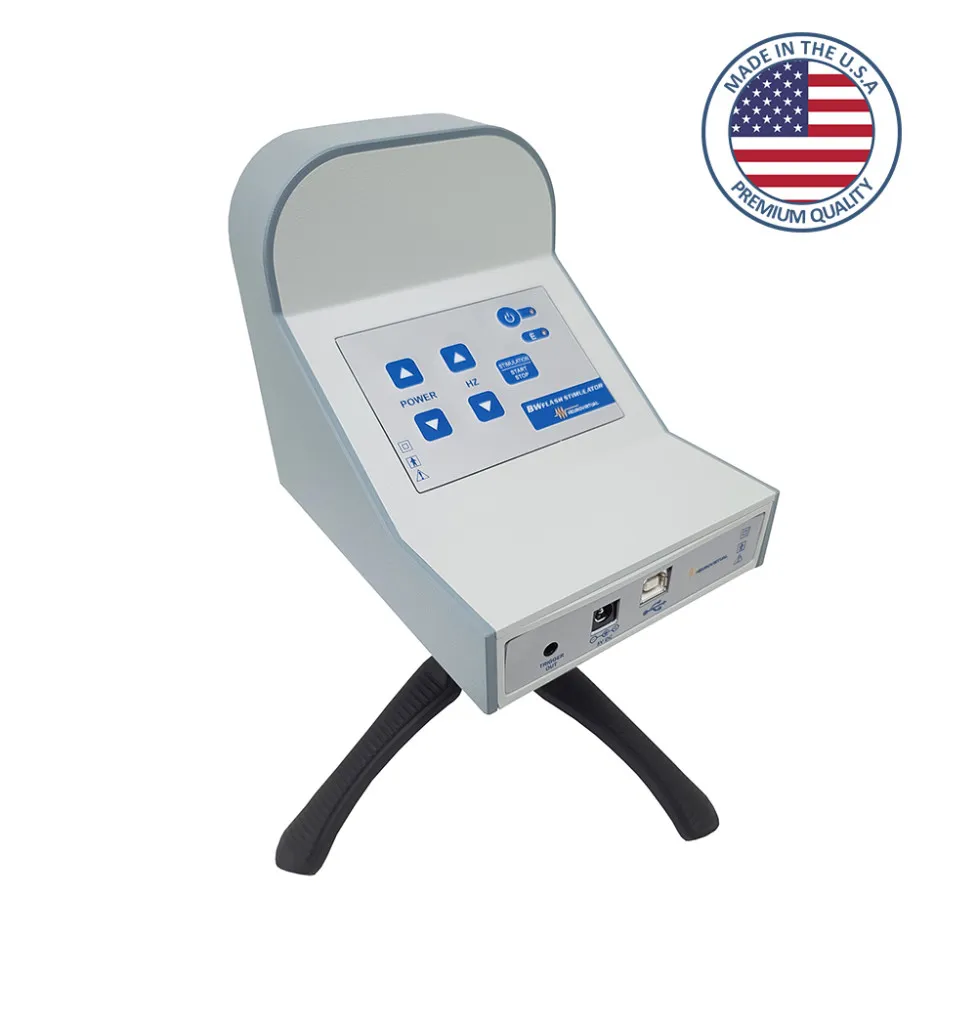

• Simple control via onboard buttons: Start/Stop, frequency, and intensity
• Includes 10 cm optic diffuser for uniform stimulation field

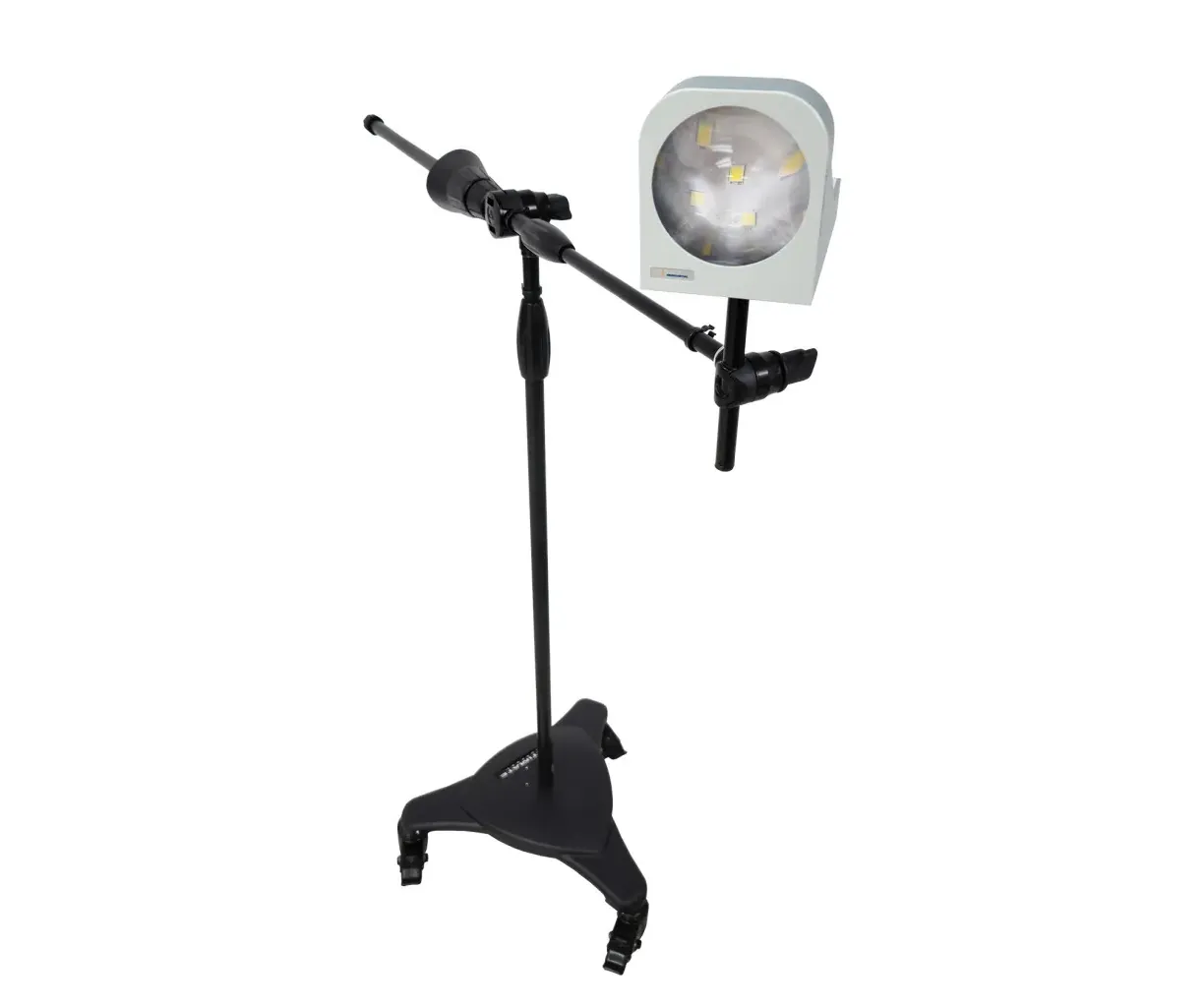

• Lightweight and portable with tripod support
• Can be positioned at the recommended 30 cm distance from patient
Adaptable to Any EEG Setup
The BWFlash is fully compatible with:
• Neurovirtual EEG systems (BWIII, BWMini)
• Third-party EEG devices via 3.5 mm Trigger-Out port
Whether in clinical settings or portable EEG studies, the BWFlash fits seamlessly into your workflow.
Stimulation Modes and Control Options
• Standalone Mode: Operate directly via physical control panel

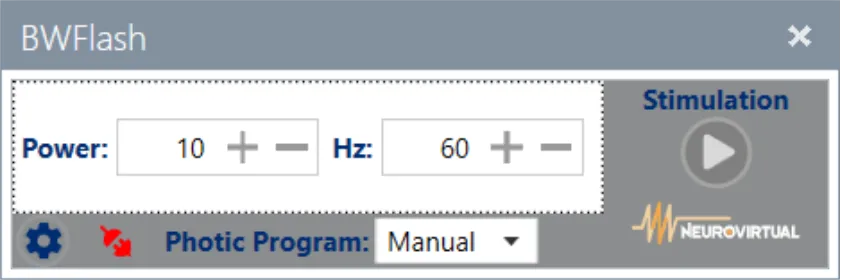

• Software Mode: Control stimulation parameters via BWAnalysis
• Trigger-Out Mode: Sync with external EEG systems using stereo cable
In software mode, users can create and save custom stimulation protocols with defined pulse counts, durations, and intervals.
Key Technical Specifications
• Stimulation frequency: 1–60 Hz (adjustable in 1 Hz steps)
• Intensity levels: 10 programmable brightness settings
• Connection: USB Type B, 5VDC power supply
• Trigger Output: 3.5 mm stereo jack
• Dimensions: 155 × 115 × 128 mm; Weight: 350 g
• Operation temperature: 0°C to 40°C
• No heat generation; LED-based output without xenon bulbs
Regulatory and Safety Standards
• Complies with IEC 60601-1 standards for Class I, Type BF equipment
• Includes safeguards against electrostatic discharge (ESD)
• Non-invasive, non-sterile device; requires no calibration or sterilization
• Visual inspection recommended before each use
